RG3 Hub Technology

Learn about the features and benefits of our Road and Gravel hub design.
Shop RG3

Project321 Hubs are engineered for riders who demand precision, speed, and durability on every ride.

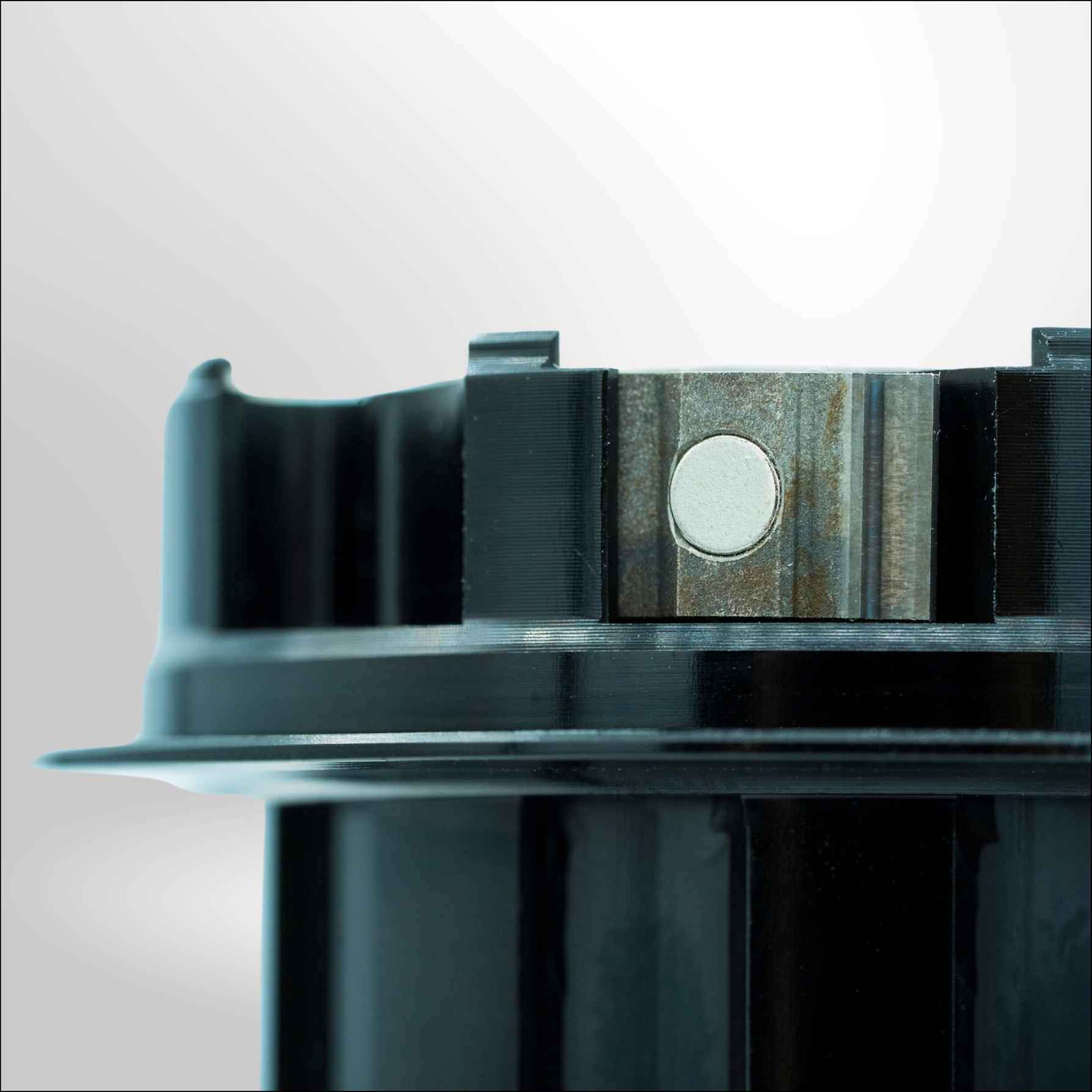

Advanced M-Pulse Technology
Advanced M-Pulse Technology

Designed for instantaneous power transfer and reduced drag. Unlike traditional spring actuated drive mechanisms, M-Pulse uses magnets to actuate the pawls—eliminating tiny springs that can be lost or damaged during servicing. This not only reduces drag, but also improves reliability and ease of maintenance.

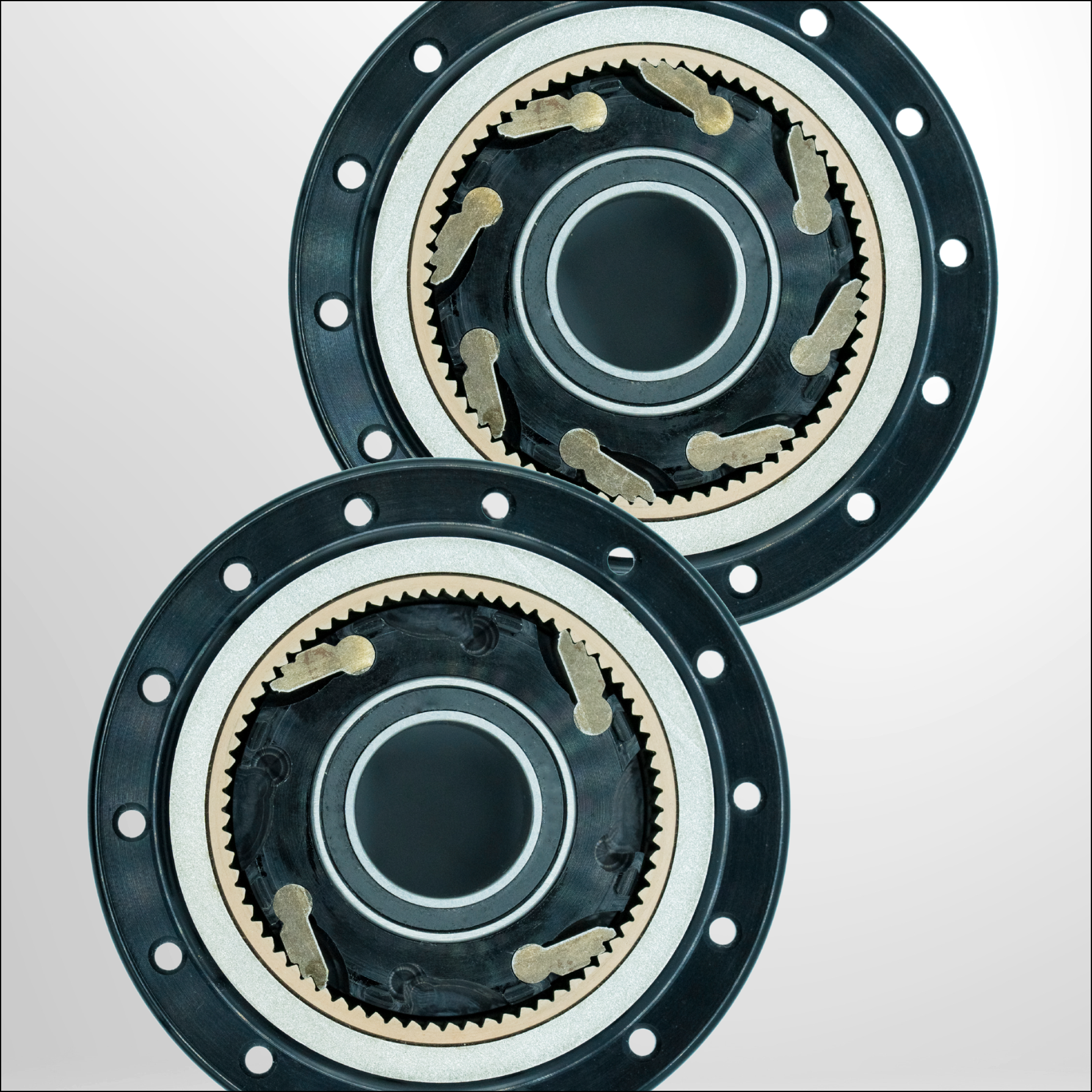

Instant Rock-Solid Engagement
Instant Rock-Solid Engagement

RG3 features a 72-tooth drive ring with oversized teeth  paired with magnetically-actuated pawls, providing rapid engagement and minimized drag while freewheeling. The incorporation of four pawls working in pairs of two, results in 144 points of engagement (POE) and a precise 2.50° engagement angle.

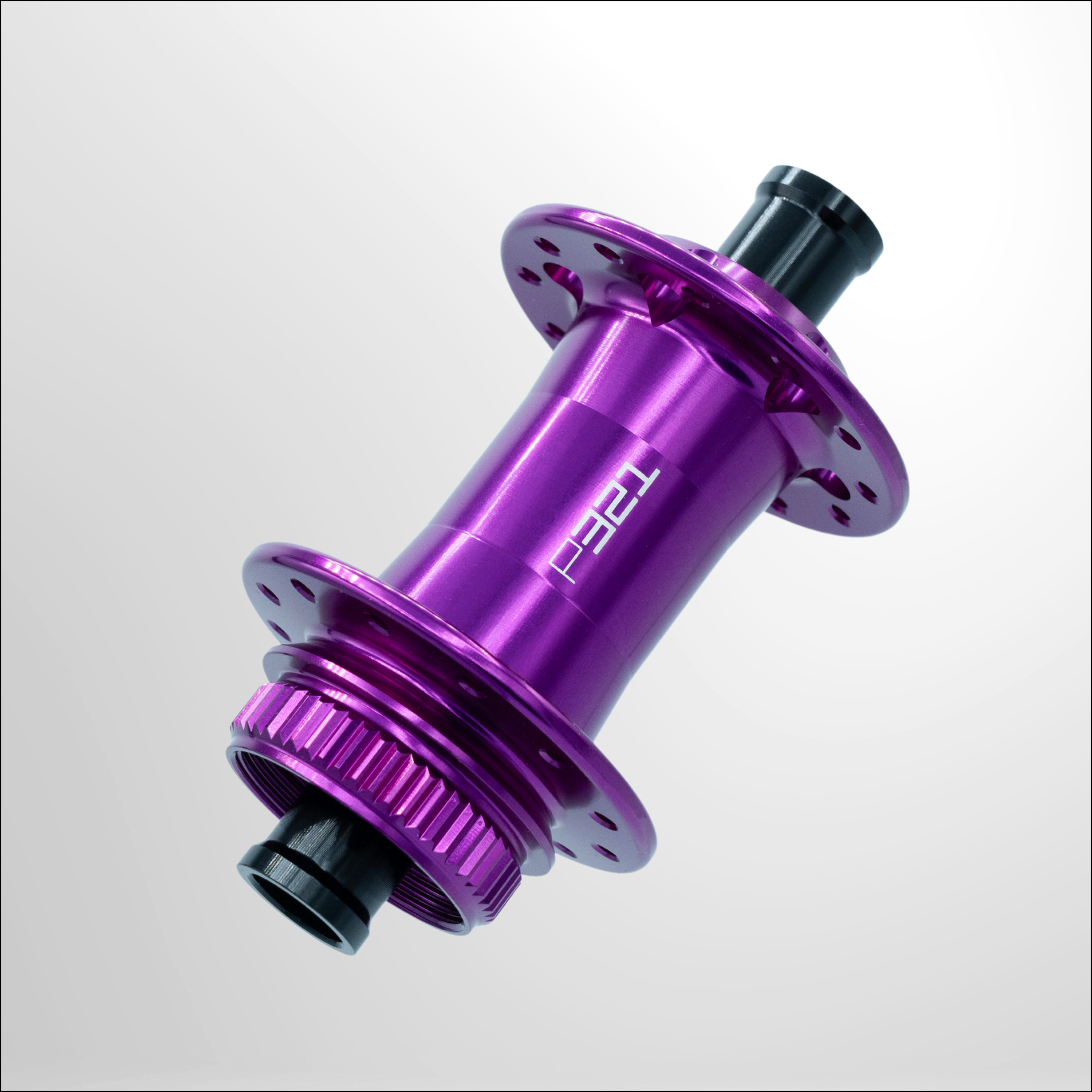

Foundation for Strong Wheels
Foundation for Strong Wheels

Optimized hub geometry to balance spoke tension, angled flanges for a more direct path for spoke and nipple, and tall flanges to maximize torsional stiffness make Project321 hubs the ideal foundation for incredibly stiff, responsive, and reliable wheels.

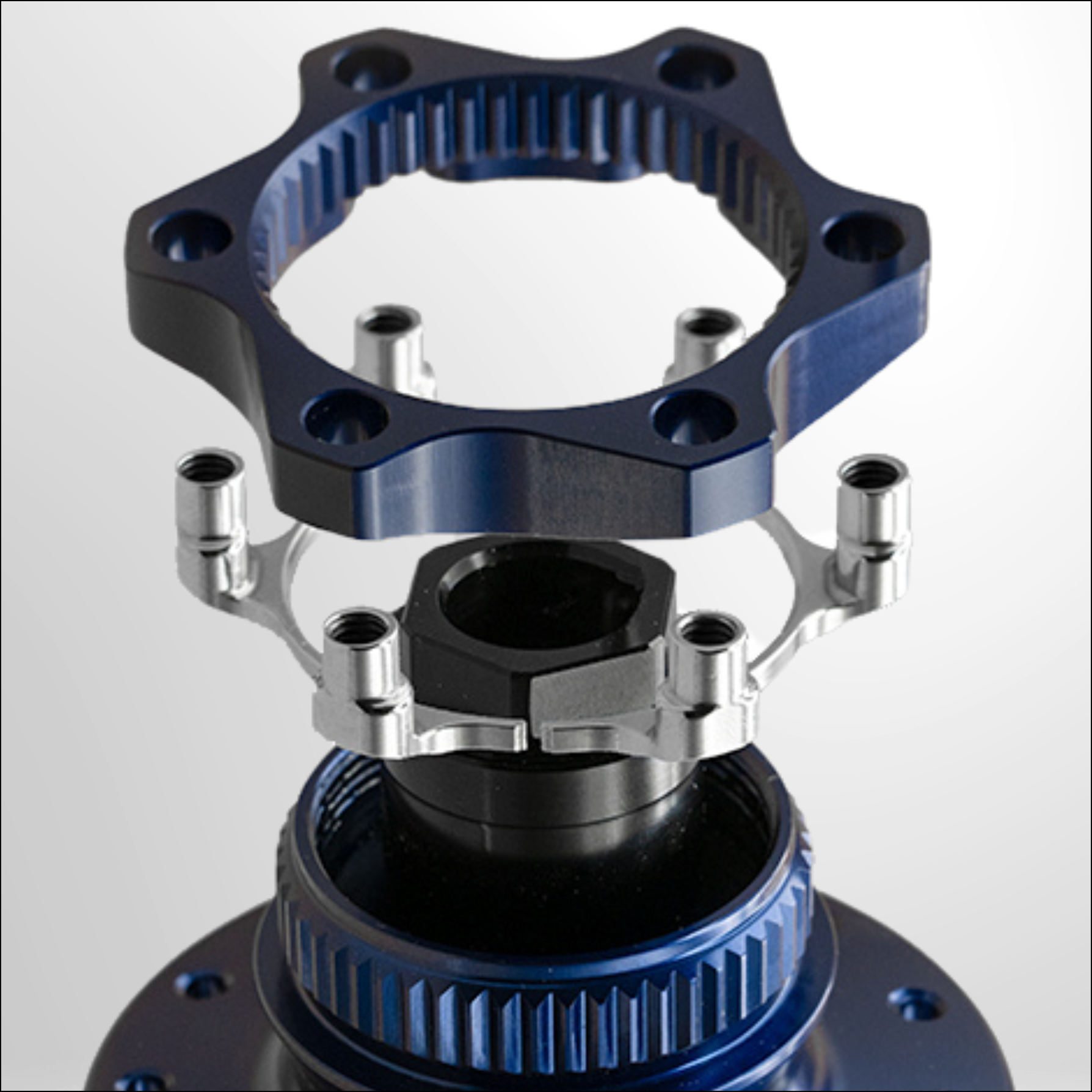

6-Lock Technology
6-Lock Technology

A new and enhanced six-bolt design featuring stainless steel thread and no lock ring, allows you to easily convert from six-bolt to Center Lock with only T25 Torx hardware. 6-Lock Technology gives you the versatility to run your preferred rotor system. Available as an upgrade to RG3 hubs.

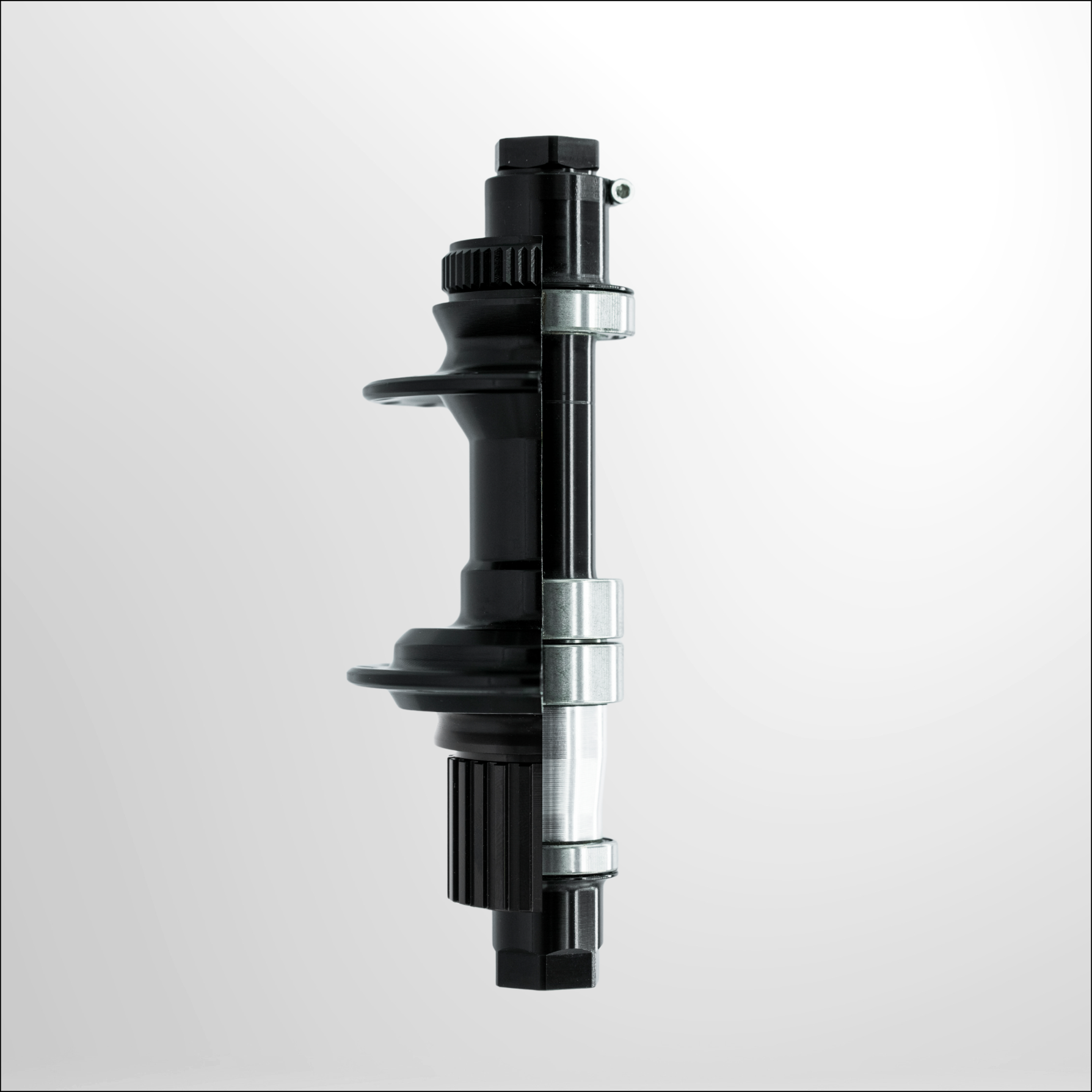

Updated Axle and Bearing Layout
Updated Axle and Bearing Layout

Fully anodized 7075 aluminum axles with two double row bearings at the highest stress points and fine pitch preload adjustment, delivers long lasting, smooth rolling performance under the most demanding conditions.

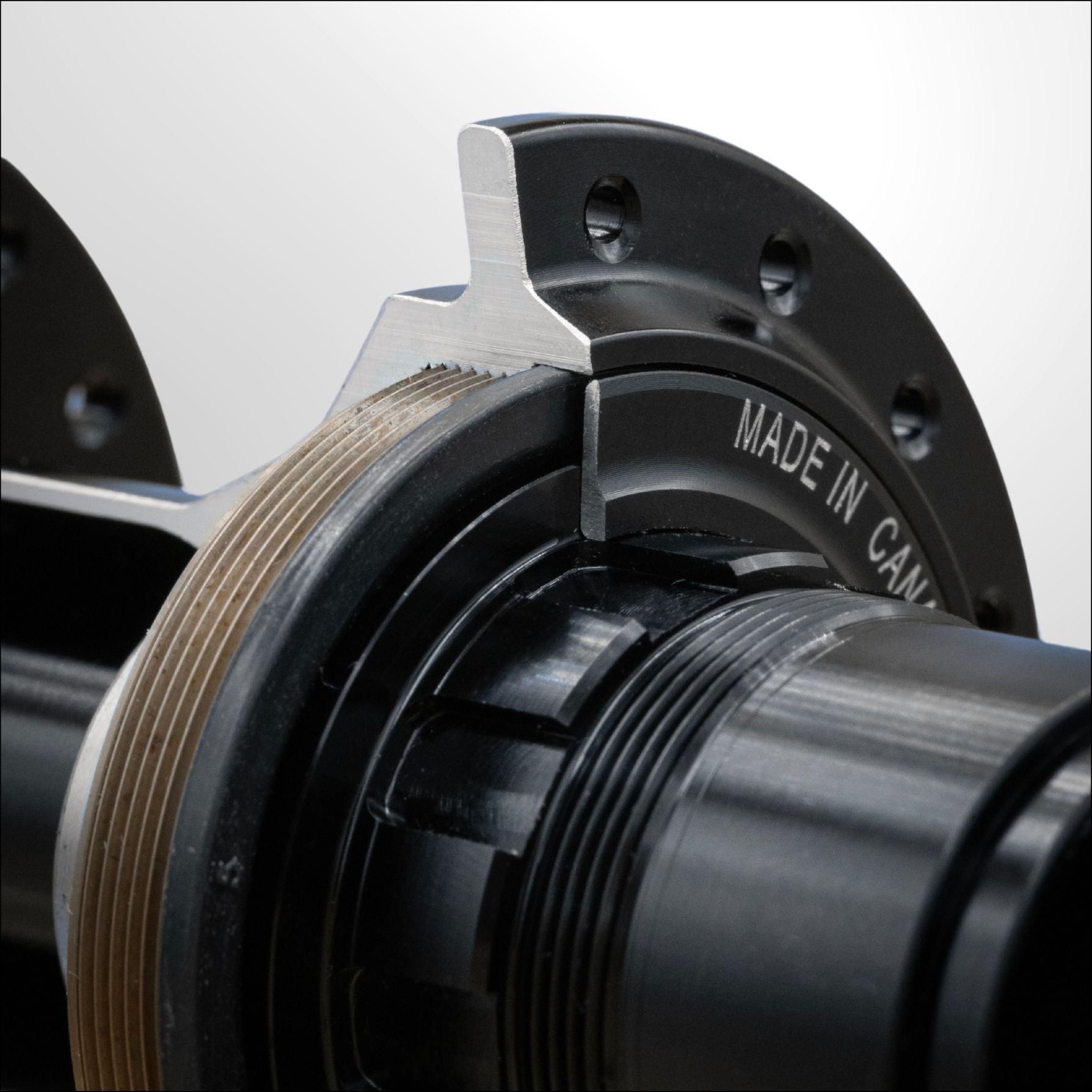

Drive Ring Seal System
Drive Ring Seal System

Improved two piece seal system keeps oil in and contaminants out, through a new low-drag, light-contact rubber seal and aluminum dust shield.

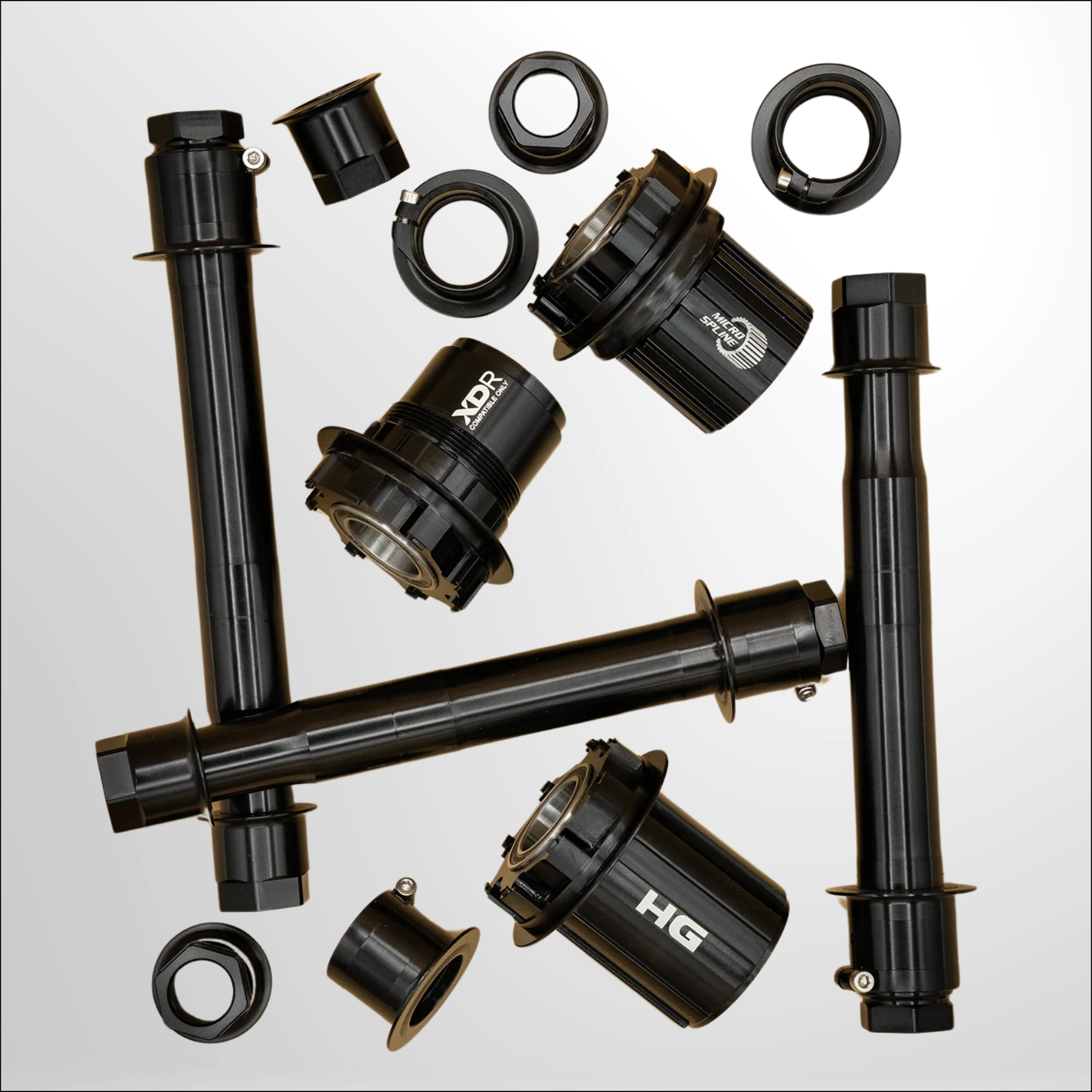

Maximized Compatibility
Maximized Compatibility

Project321 Hubs are designed to make drivetrain and end cap conversions simple and straightforward. RG3 features easily interchangeable drivers offered in HG, XD, and MicroSpline versions, universal end caps and bearing configurations across all drivers and axle sizers, and both 12mm and 15mm front end caps.

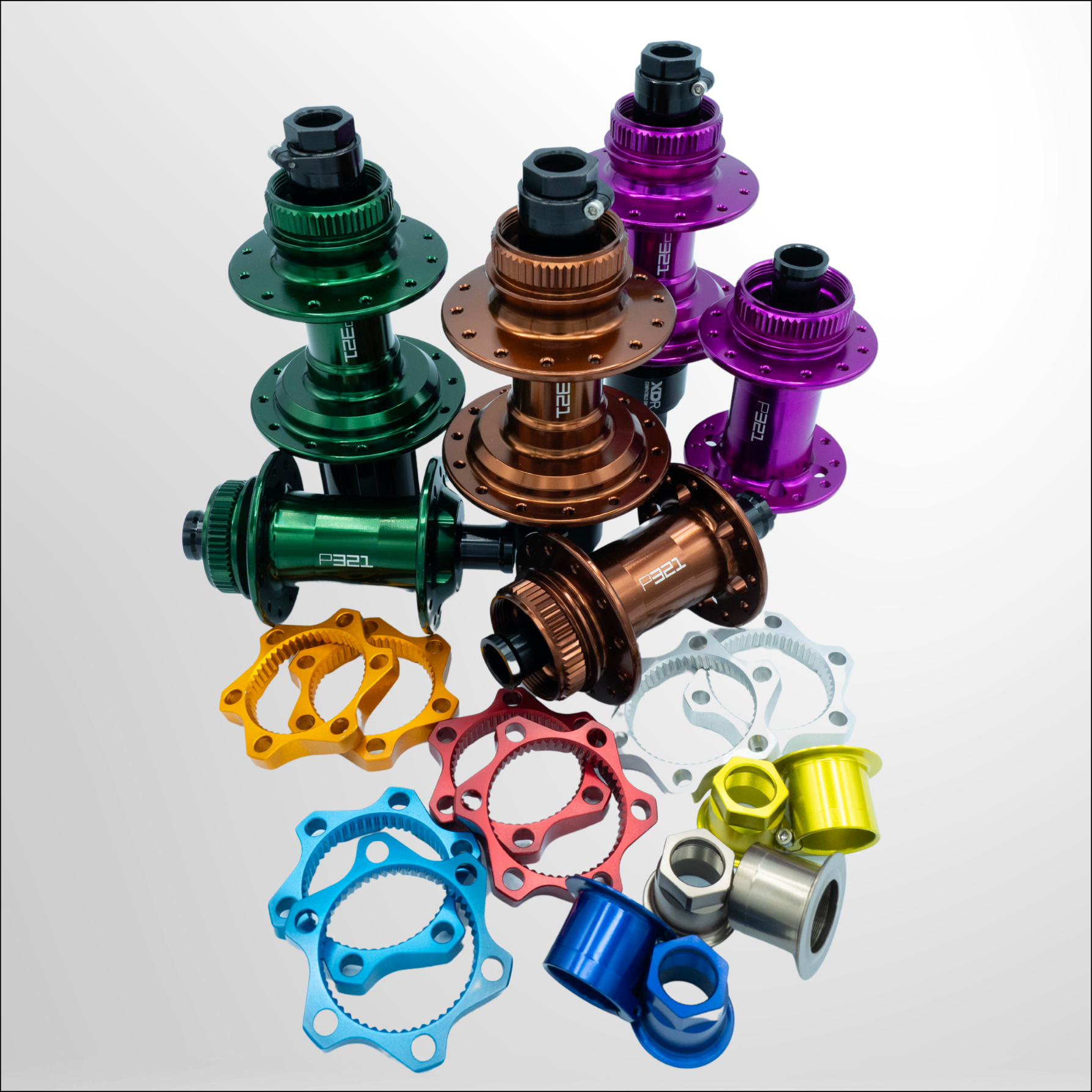

Colour Customization
Colour Customization

Colour match your hubs to add a personal touch to your build. With 12 vibrant colours offered, you can mix and match between shells, end caps, and 6-lock.

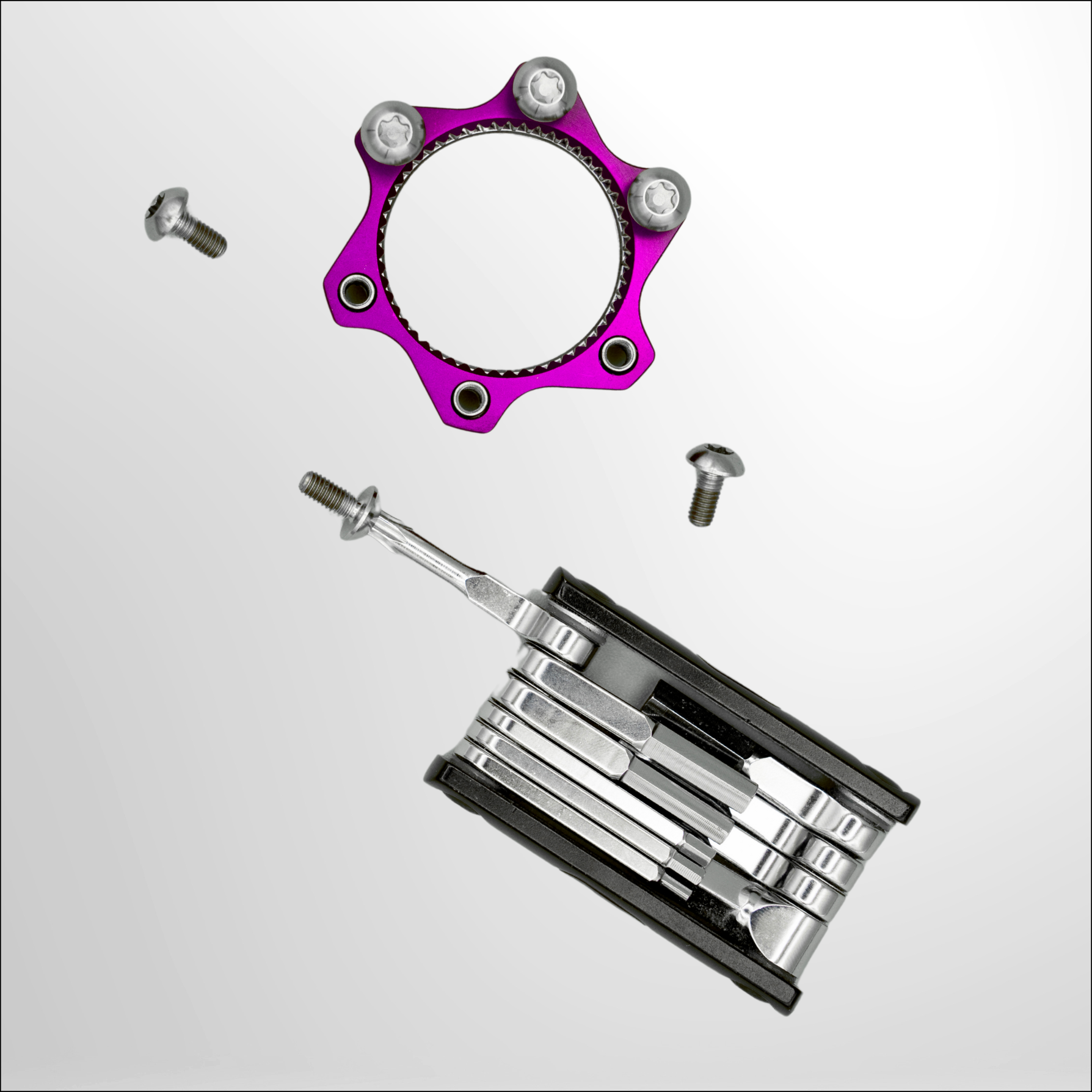

Easier to Travel
Easier to Travel

6-Lock simplifies travelling with your bike by eliminating the need for a lockring tool, and serves as a reliable backup if a thread becomes stripped.

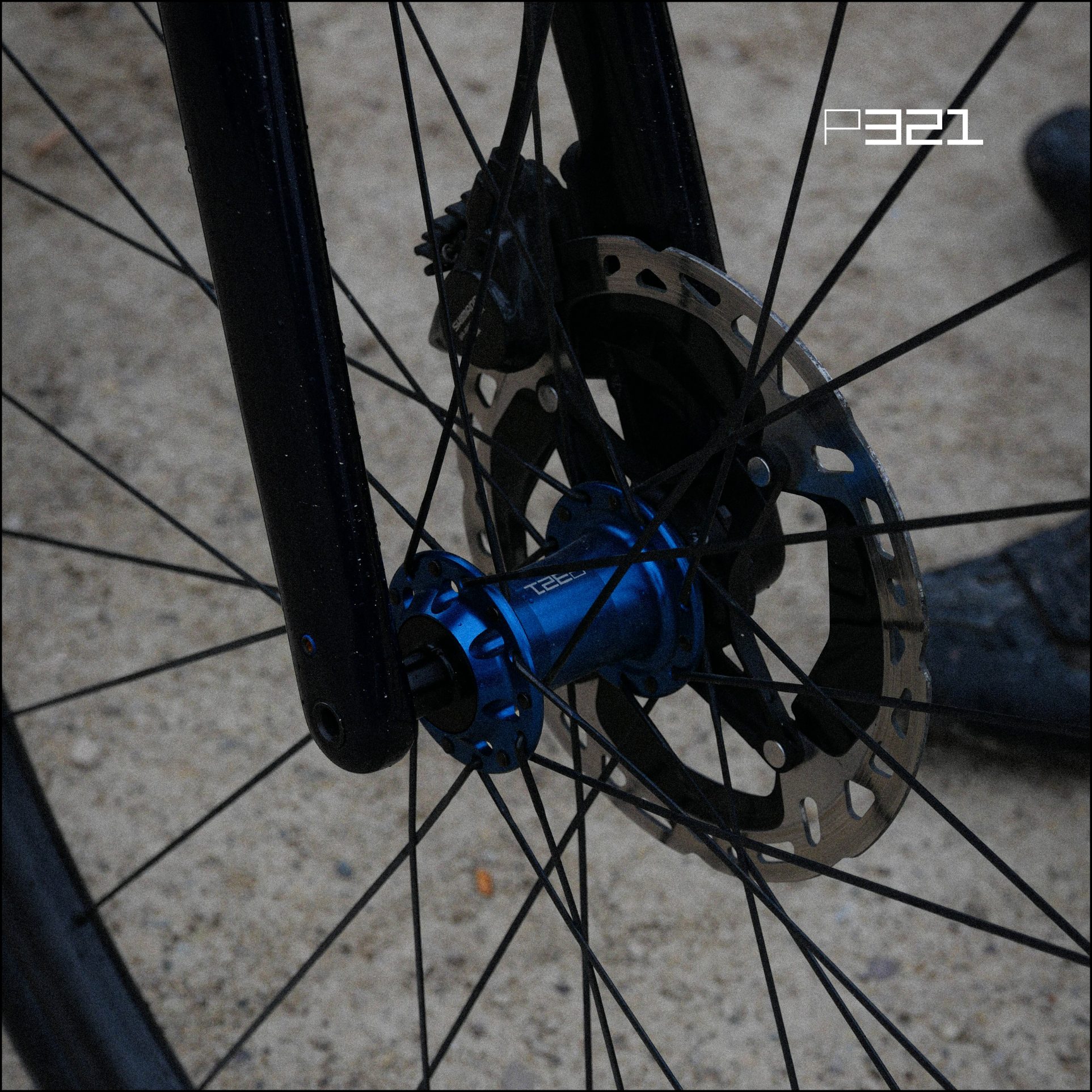

Road & Gravel Hubs
Road & Gravel Hubs

Purpose-built hubs engineered to inspire confidence on any road.
